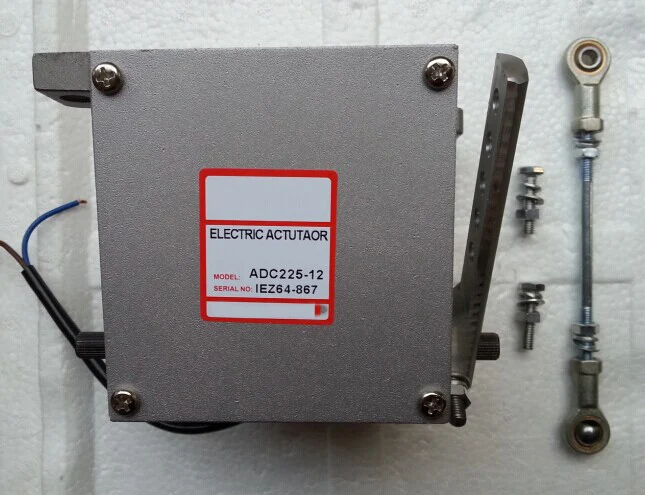

If you need ADC225-24V,Just leave us a message. ADC225 Electric Actuator for Generator SPECIFICATIONS ADC225 Power Input Operating Voltage 12, 24VDC Normal operating Current 3.0A at 12V. 1.5A at 24V Maximum Current-Continuously Rated 8.0A at 12V. 4.0A at 24V Performance Available Torque Max 2.2 lb-ft (2.7 Nm) Maximum operating shaft Augular travel 25± 1 degree CW/CCW Environmental Ambient Temperature -65 to + 200°F(-54° to +95 °C) Relative Humidity Up to 100% All Surface Finishes Fungus Proof and Corrosion Resitant Reliability Vibration up to 20 G, 50-500 Hz. Testing 100% Tested Physical Dimensions See Diagram 1 Weight 8.25 lbs.(3.75kg) Mounting Any Position, electrical connector at the top preferred
